[01]
Serviceable interfaces

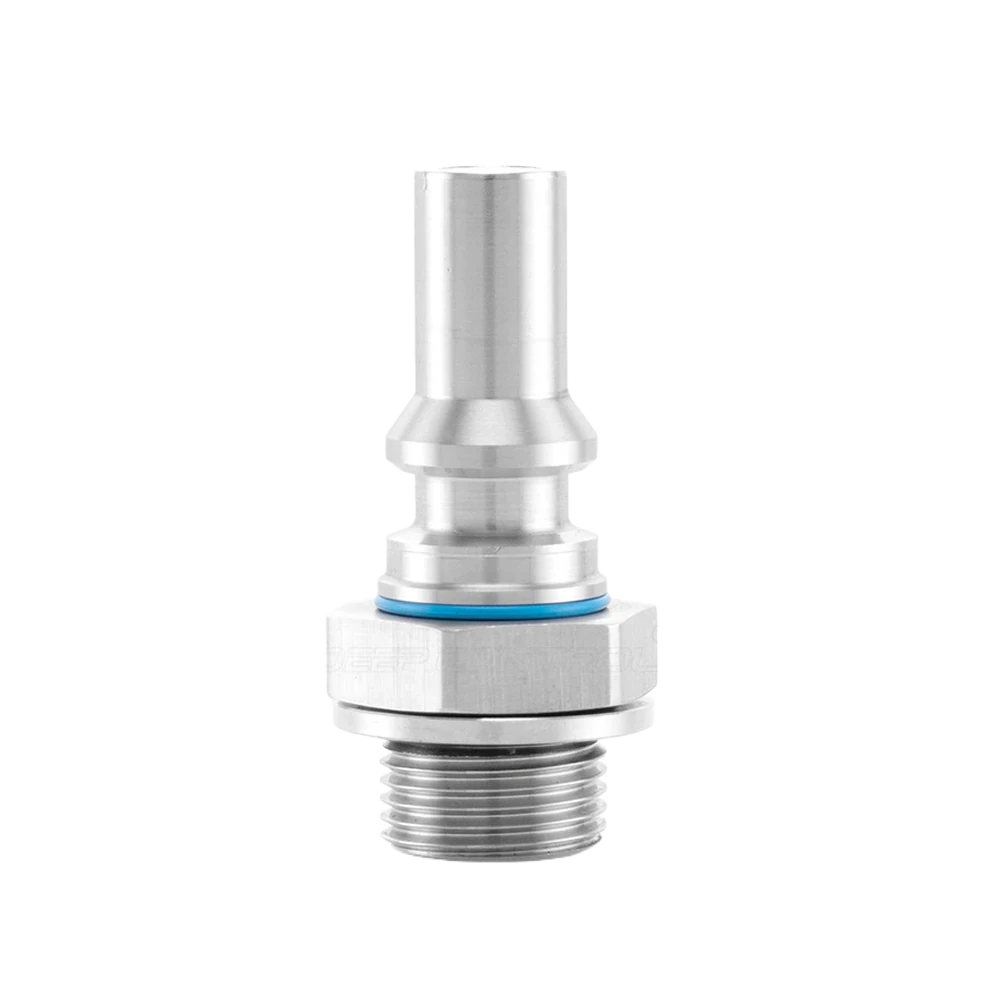

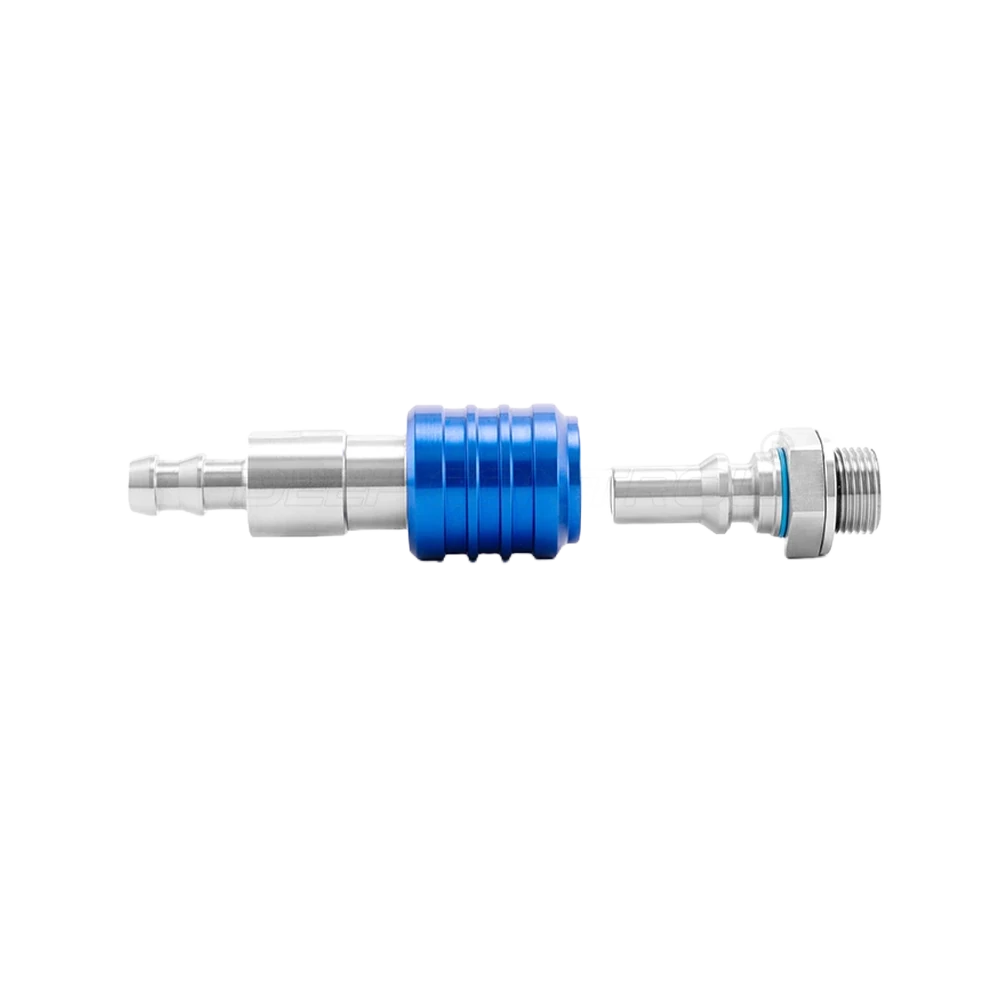

- QD-led hardware supports maintainable liquid-cooling connections
- Mating direction and access should be defined before sourcing

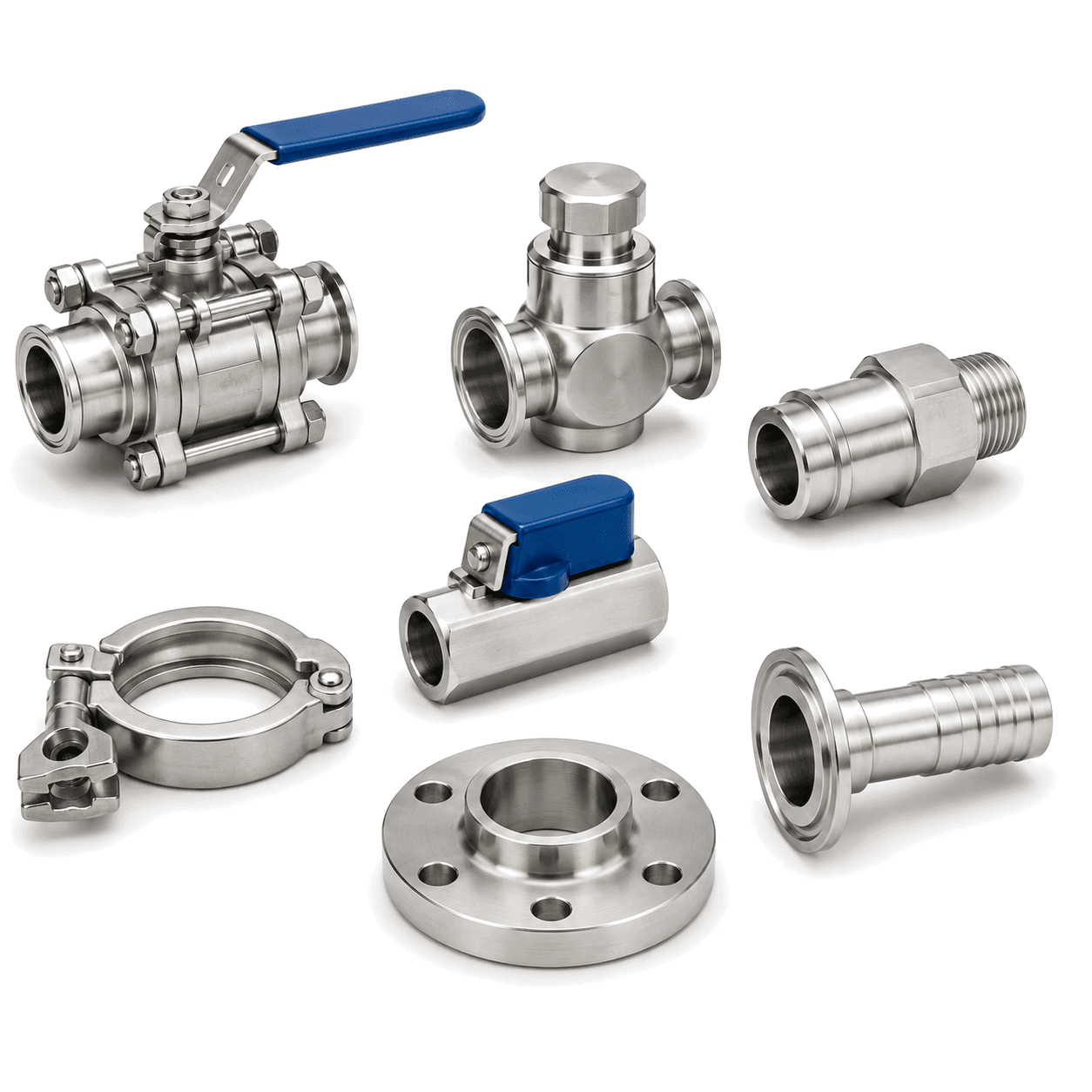

Flow Components
Flow Components
BOM-matched valves, quick disconnects, flexible connectors, and interface fittings integrated into assemblies.
Drawing-based build
Protected delivery
Where it fits
BOM-matched flow hardware for fabricated liquid-cooling assemblies.
Flow components support serviceable liquid-cooling connections when the customer or integrator defines the component family, material, pressure, medium, and mating interface.
[02]
BOM discipline
- Valves, filters, hoses, seals, clamps, and adapters follow the approved BOM
- Substitution rules should be explicit
[03]
Assembly support
- Components can be integrated into manifolds, pipe modules, or CDU-side packages
- Compatibility and test expectations stay project-defined
Product family overview
Flow component packages matched to the approved BOM.
01 / Approved BOM
Approved BOM

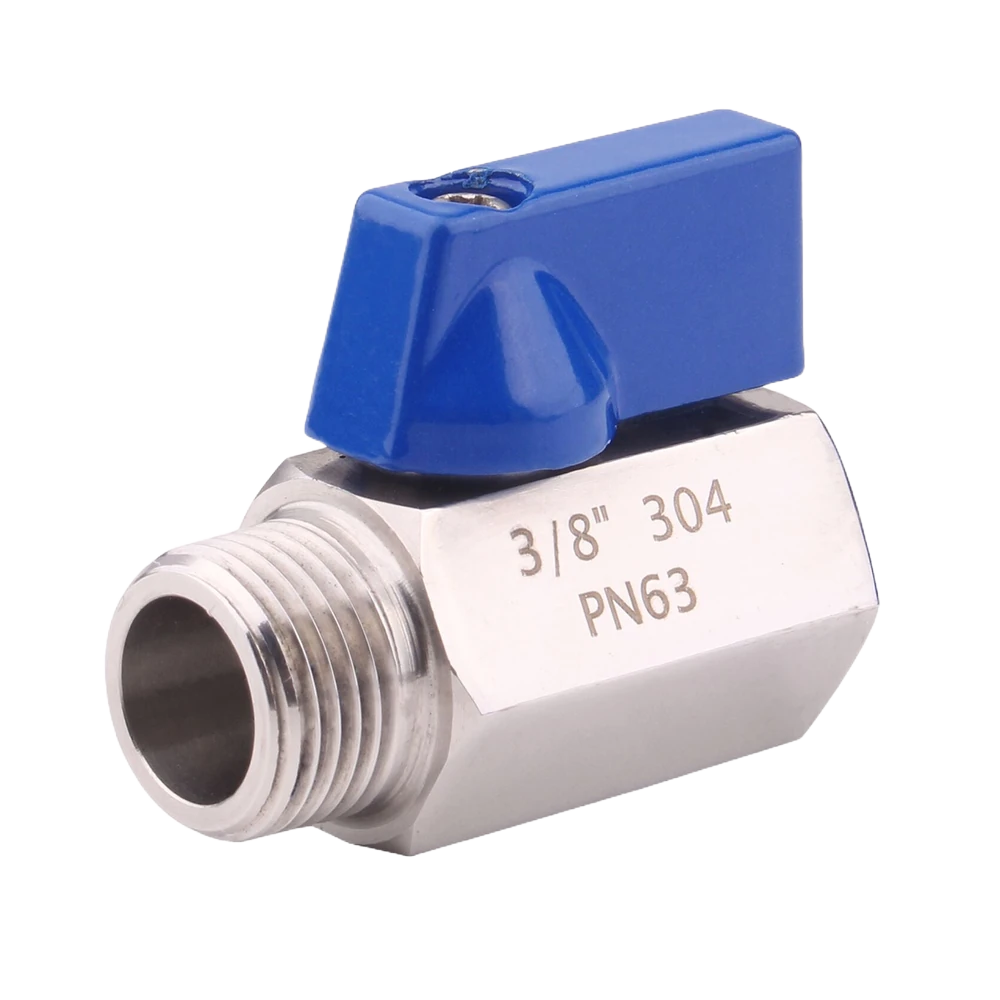

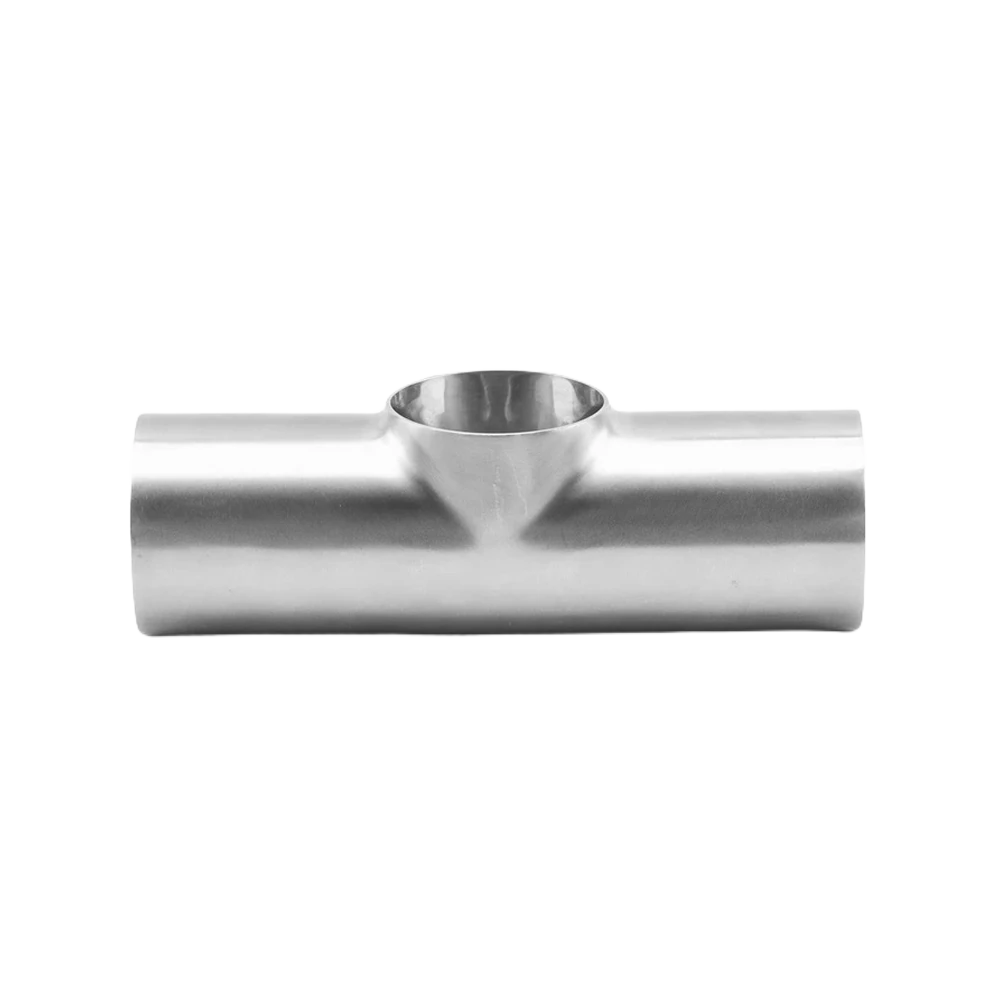

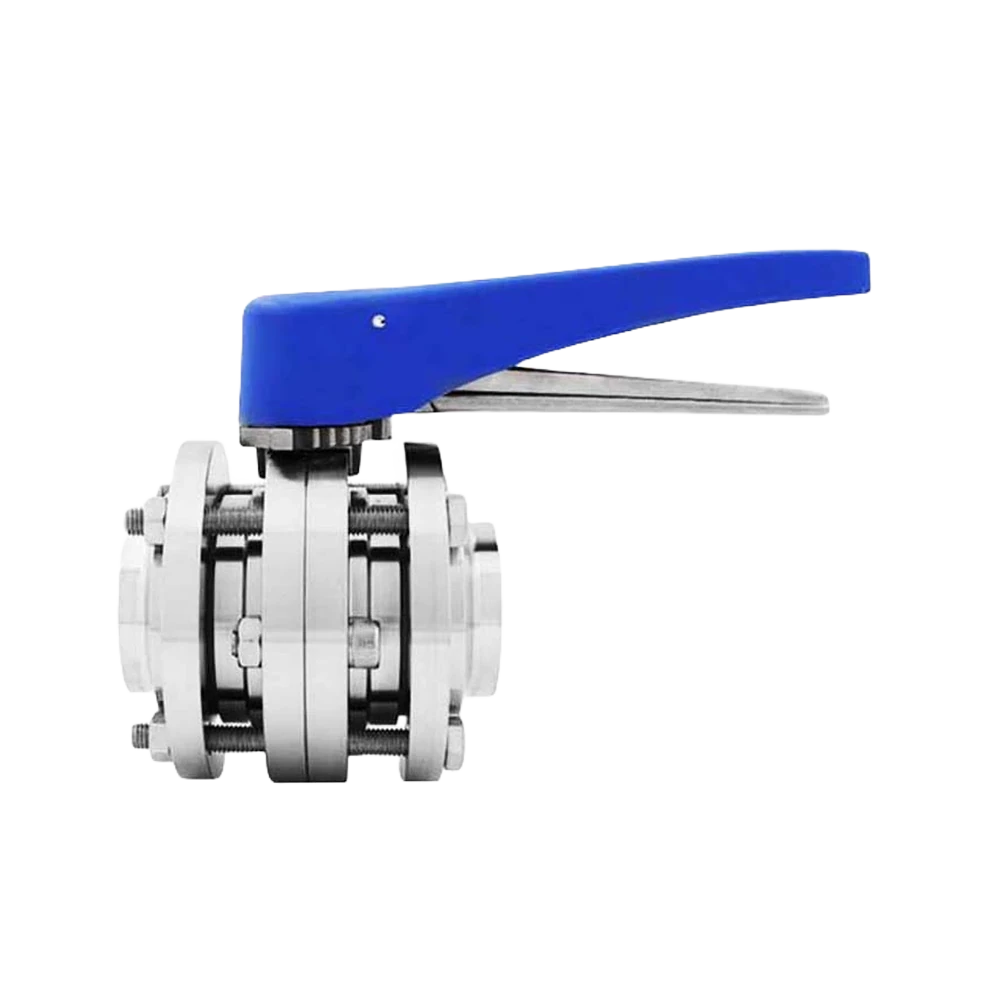

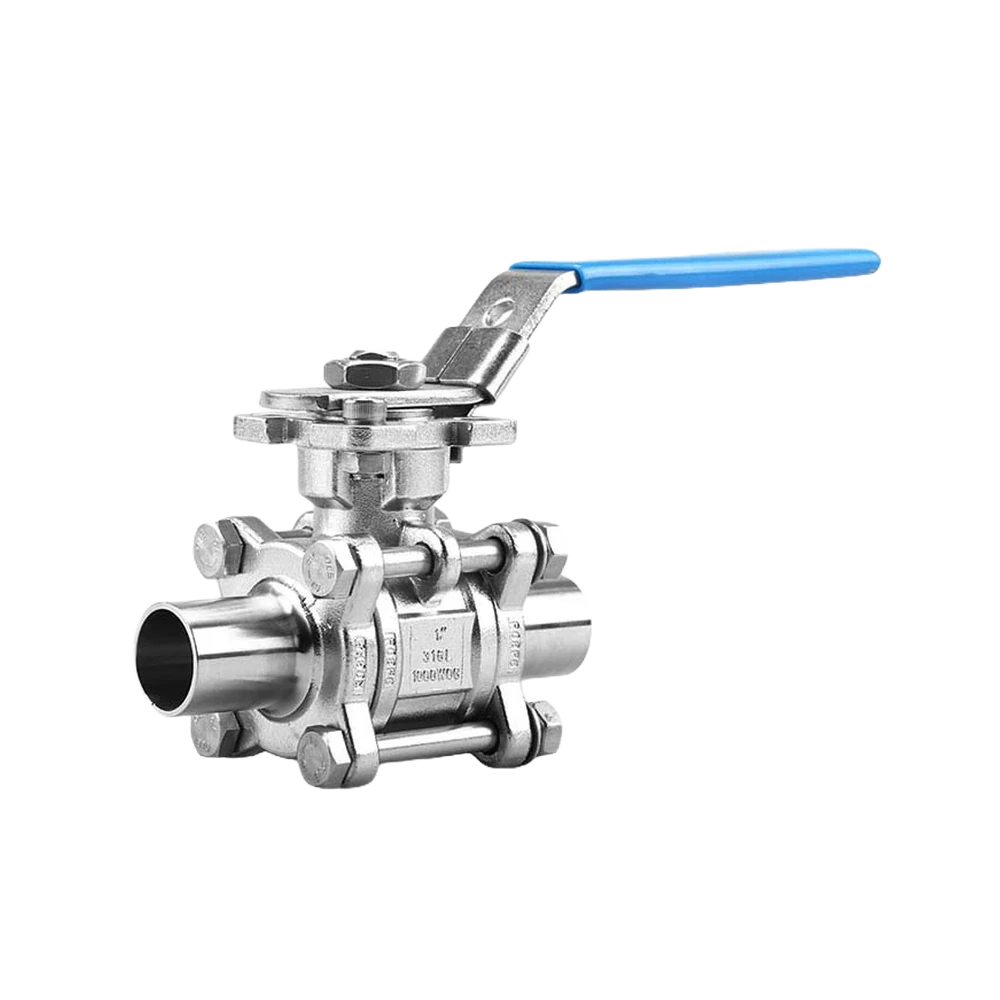

Valves, QDs, fittings, filters, hoses, clamps, gaskets, and sensor ports follow the customer-approved BOM.
02 / Project-defined
Material compatibility
Wetted materials and seals are matched to the medium, pressure, and temperature requirement.
03 / Released package
Interface standard

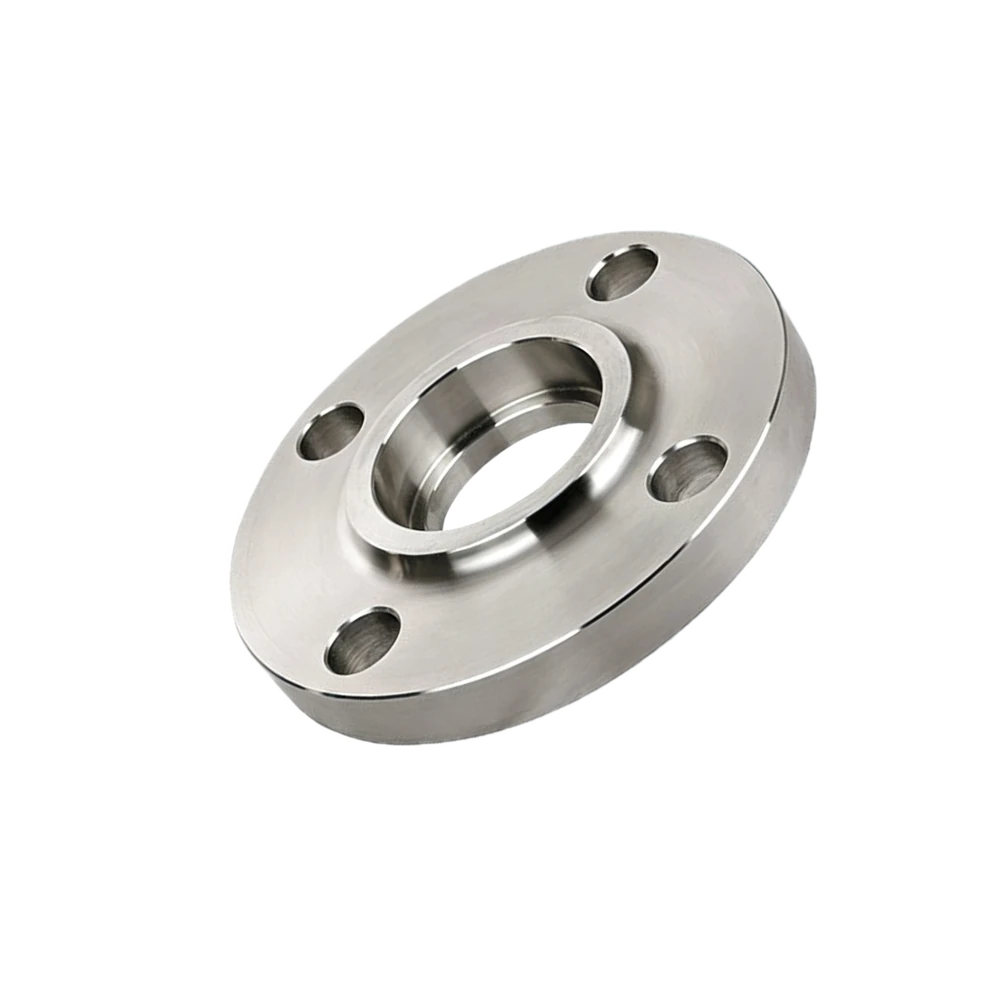

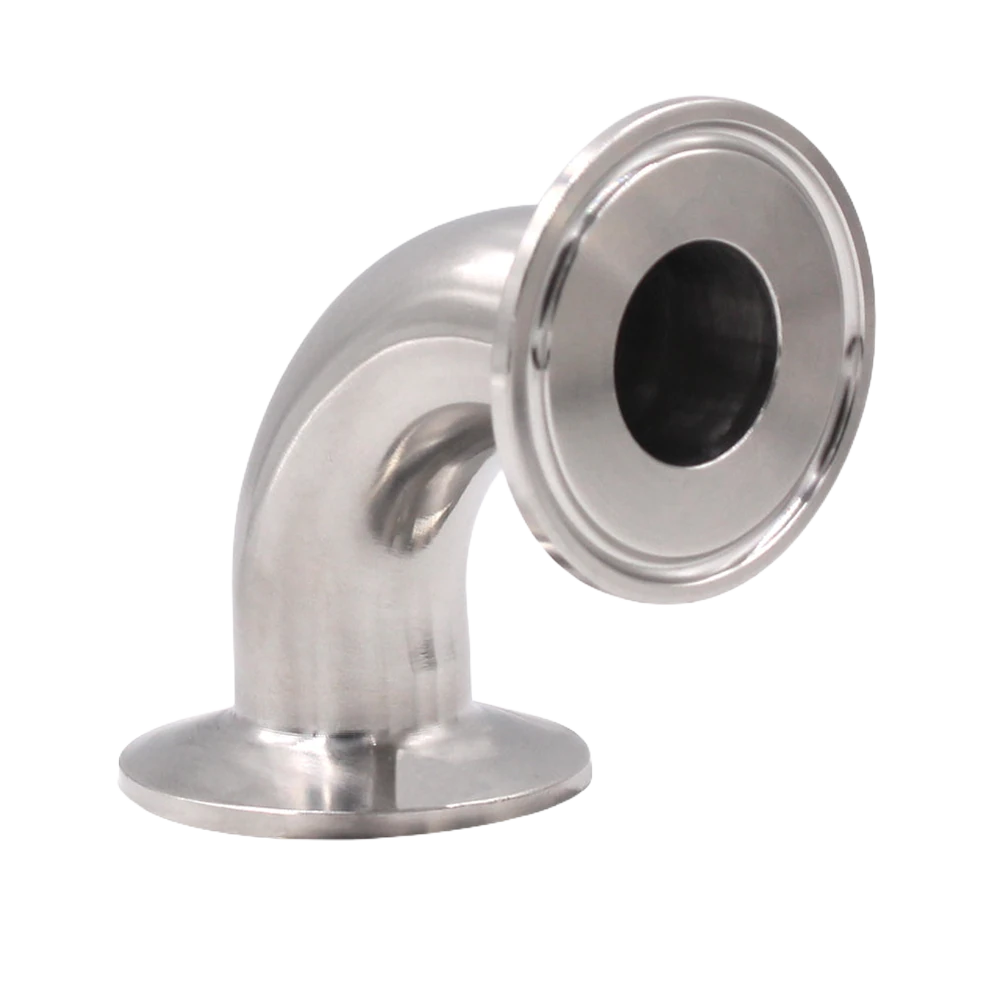

Thread, clamp, flange, hose barb, QD, or project-specific adapter follows the released interface package.
04 / When applicable
QD acceptance
Leakage or sealing criteria follow the selected QD standard and are not generalized across every component.
05 / Approval needed
Substitution rule
Equivalent parts require customer approval before fabrication or assembly.
06 / Delivery package
Packing & traceability
Labels, grouped packing, capped ports, and component references are retained for delivery.
Scope boundary
Customer defines the system. Chelsey fabricates the hardware.
This section keeps the manufacturing scope, interface inputs, and handoff boundary visible without turning the family page into a system-design page.
Drawing package
Starts from customer drawings, BOMs, samples, or interface requirements.
Interface discipline
Connection standard, material, seals, and component preferences should be confirmed before fabrication.
Fabrication support
Stainless fabrication, component integration, cleaning, capping, and labeling stay inside the approved scope.
Quality boundary
Test support per customer protocol, packing, and export-ready delivery can be aligned.
Buyer handoff FAQ
Frequently asked questions
01What should be prepared before a product-family review?
Send drawings, BOMs, samples, interface requirements, pressure requirements, component preferences, quantity, and packing destination.
02Does Chelsey define the full cooling system?
No. Chelsey fabricates and integrates hardware within the customer or integrator design package.
03Can customer-specified components be used?
Yes, when the selected valves, quick disconnects, hoses, fittings, or sensors are available and compatible with the approved scope.
04Can testing be included?
Test support per customer protocol, leak review, cleaning, visual inspection, and packing checks can be aligned before delivery.
Send the drawings.We review the build.
Share pipe size, material, pressure, interface type, quantity, fluid medium, customer test protocol, and packing destination for a focused fabrication review.
Drawing / layoutPipe sizeMaterial gradeDesign pressureInterface typeValve requirementTest pressureQuantity
