Product overview
CDU Connection Moduleproduct details

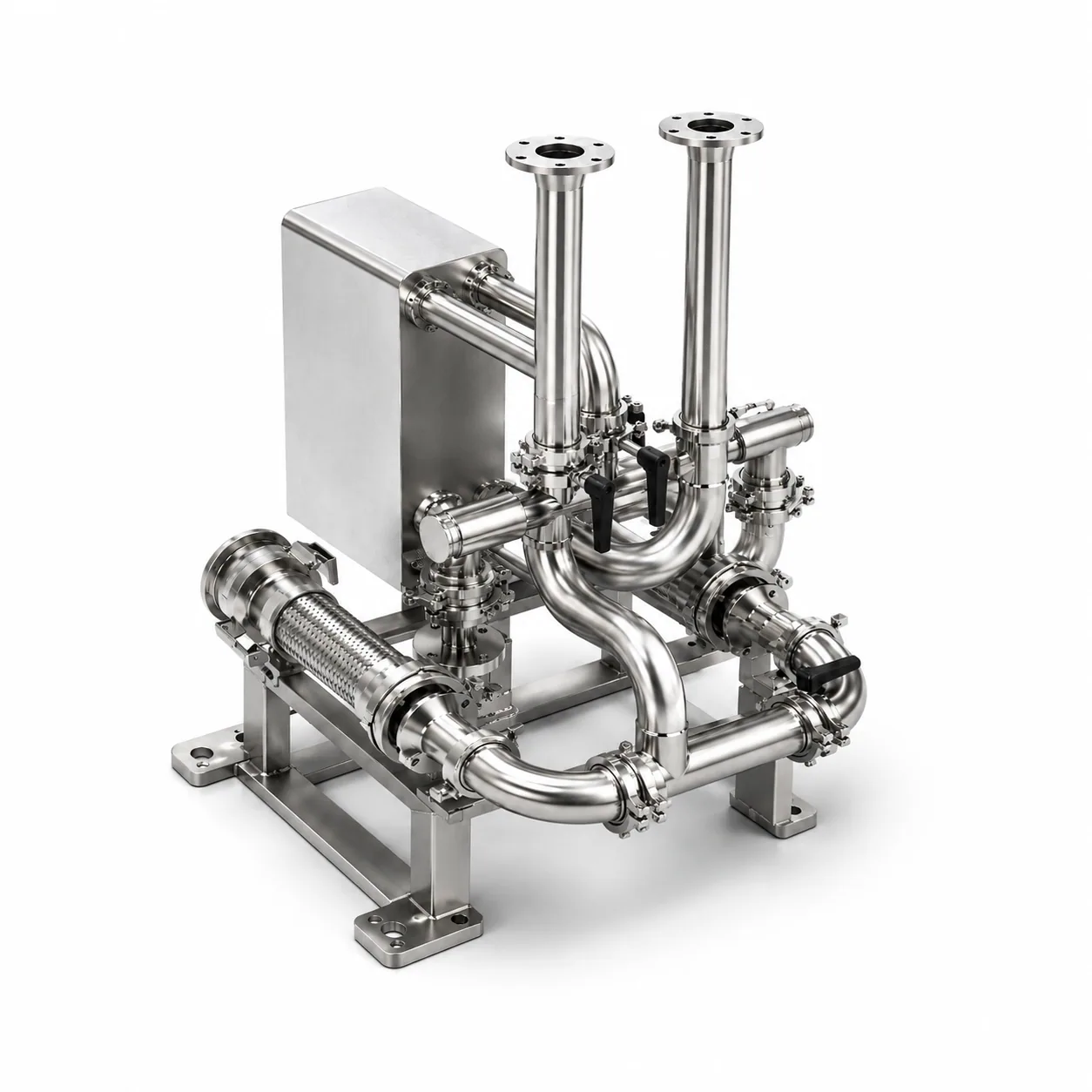

A CDU connection module links CDU inlet / outlet ports to project pipework. It is a connection hardware package, not a CDU unit or controls package.
Product features
- Inlet / outlet position, adapter length, valve access, and service clearance follow the CDU interface drawing.
- Valves, gauges, drains, vents, hoses, clamps, gaskets, QDs, and brackets can be integrated by BOM.
- Handle direction, label position, flow direction, and obstruction points can be checked before build.
- Pressure or leak testing follows the customer test protocol.
Specifications
- Interface direction
- per CDU inlet / outlet drawing
- Adapter length
- per equipment envelope or project drawing
- Connection
- clamp, flange, thread, hose, sanitary clamp, QD, or adapter
- Valve package
- isolation, drain, vent, gauge, or service valve per BOM
- Seal material
- EPDM or project-specified compatible gasket / seal
- Material
- stainless pipework per project requirement
- Service clearance
- handle direction and access checked per layout
- Pressure test
- per customer protocol
Application
Used between CDU equipment interfaces and secondary-side pipework where adapter geometry, valve access, and service clearance must be confirmed before shipment.
Standard functions
- CDU inlet / outlet adapter connection.
- Approved valves, fittings, hoses, or QD interfaces.
- Orientation, label, and clearance review.
- Capped and protected delivery.
Optional functions
Typical applications
Suitable for CDU inlet / outlet transitions, CDU-to-rack piping, CDU-to-row piping, and service connection packages. CDU selection, controls, and commissioning remain outside this product scope.
Send the drawings.We review the build.
Share pipe size, material, pressure, interface type, quantity, fluid medium, customer test protocol, and packing destination for a focused fabrication review.
Drawing / layoutPipe sizeMaterial gradeDesign pressureInterface typeValve requirementTest pressureQuantity
