Product overview
Cooling Pipe Moduleproduct details

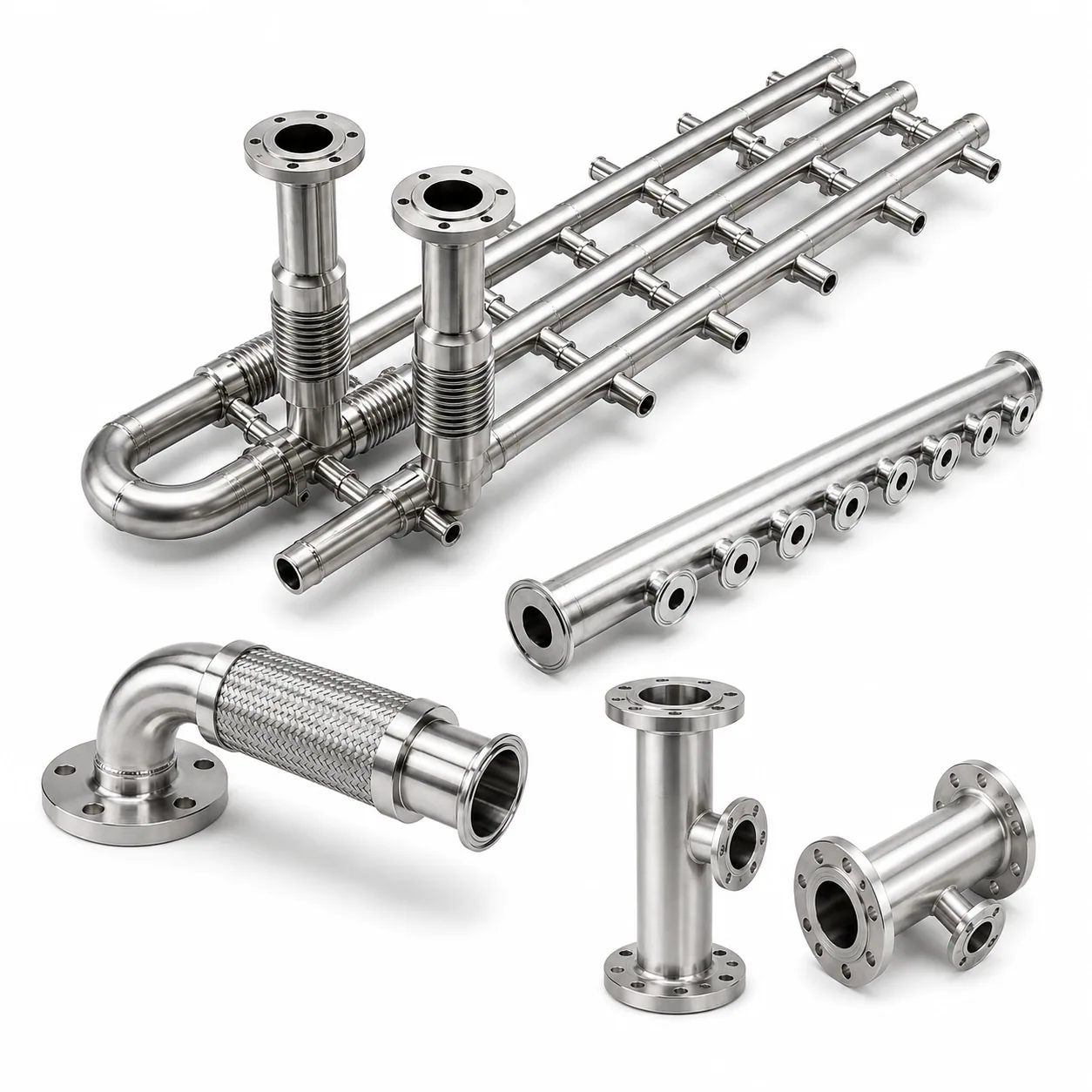

A cooling pipe module is a prefabricated stainless pipe section built from route drawings, CAD files, BOMs, or spool lists. It keeps geometry, end connections, labels, and delivery groups visible before site work.
Product features
- Pipe route, bend geometry, branch location, and support points follow the released drawing.
- Flange, clamp, threaded, hose, weld-end, or adapter ends can be prepared when specified.
- Straight spools, bends, branch outlets, and brackets can be grouped by project zone.
- Pressure or leak testing follows the customer test protocol.
Specifications
- Pipe OD
- per drawing or CAD route
- Wall thickness
- per drawing or project requirement
- Spool length
- per route drawing or cut list
- Bend radius
- per CAD route or released drawing
- Branch outlets
- location, size, and direction per drawing
- End connection
- flange, clamp, thread, hose, weld-end, or adapter
- Material
- SUS304 / SUS316 stainless tube, or project-specified grade
- Pressure test
- per customer protocol
Application
Used for rack, row, CDU-side, or facility-side liquid cooling pipe runs where prefabricated sections can reduce on-site fitting work.
Standard functions
- Prefabricated pipe route.
- Prepared end connections.
- Capped ends and protected delivery.
- Zone labels and packing groups.
Optional functions
Typical applications
Secondary-loop pipe runs, CDU-to-row connections, row-to-rack routes, and prefabricated facility interface sections.
Send the drawings.We review the build.
Share pipe size, material, pressure, interface type, quantity, fluid medium, customer test protocol, and packing destination for a focused fabrication review.
Drawing / layoutPipe sizeMaterial gradeDesign pressureInterface typeValve requirementTest pressureQuantity
