Flow Component Packageproduct details

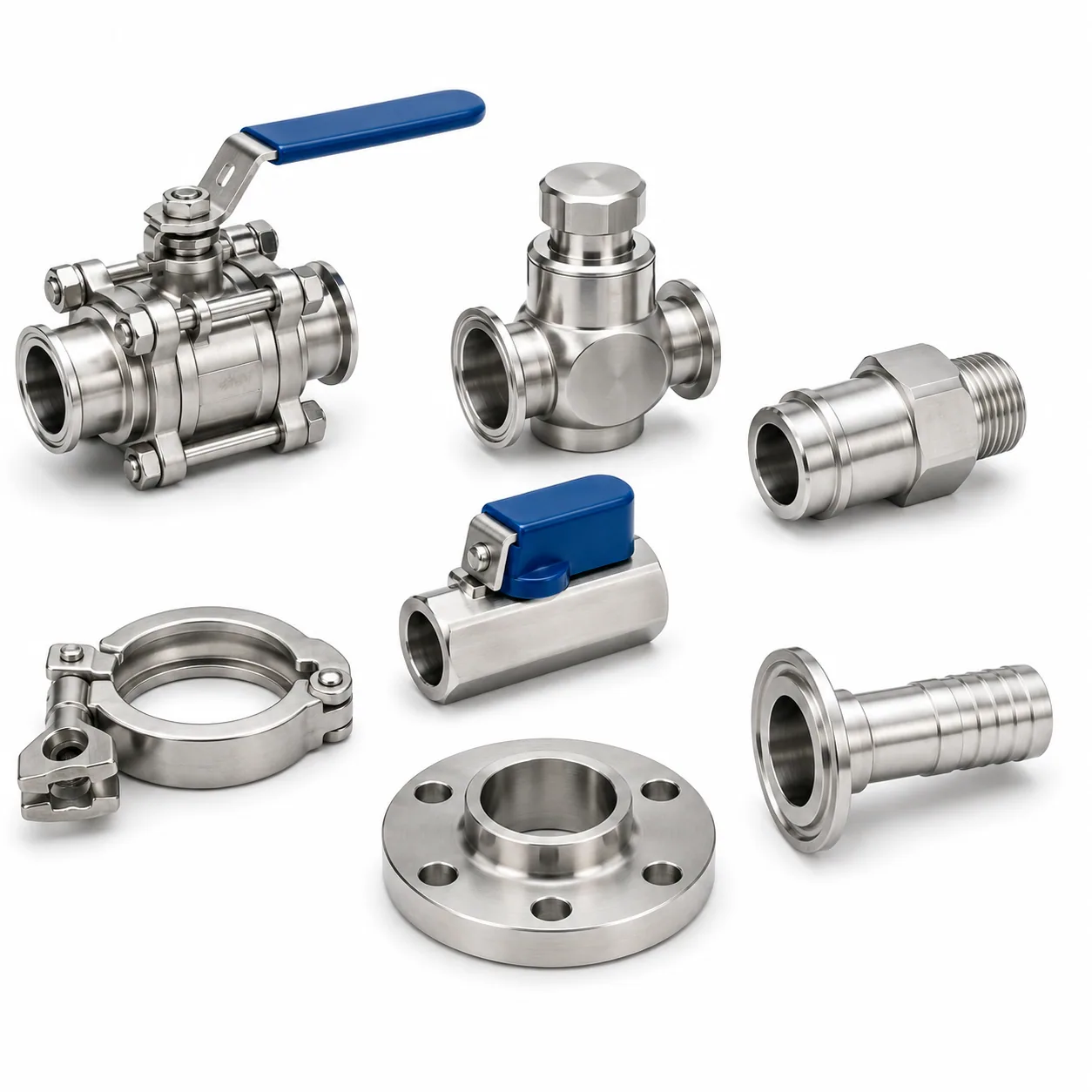

A flow component package groups customer-approved valves, quick disconnects, fittings, hoses, filters, clamps, gaskets, adapters, or sensor ports for liquid cooling hardware assemblies.
Product features
- Valves, QDs, fittings, filters, hoses, clamps, gaskets, and adapters follow the approved BOM or model list.
- Components can be prepared for manifolds, pipe modules, CDU-side packages, or service interfaces.
- Equivalent substitutions require customer approval before sourcing or assembly.
- Inspection or leak testing follows the customer protocol when included.
Specifications
- BOM basis
- approved brand, model, or accepted equivalent list
- Component type
- valve, QD, fitting, hose, filter, clamp, gasket, adapter, or sensor port
- Interface
- thread, clamp, flange, hose barb, QD, or adapter
- Wetted material
- per medium, pressure, and temperature requirement
- Seal material
- EPDM, FKM, or project-specified compatible seal
- Pressure / temperature
- selected component rating plus project requirement
- Packing
- quantity, labels, groups, and port caps per delivery requirement
- Testing
- inspection or leak test per customer protocol when included
Application
Used when approved component lists need to be sourced, grouped, labeled, and prepared for manifolds, cooling pipe modules, or CDU-side connection hardware.
Standard functions
- BOM-led component grouping.
- Interface and mating check.
- Substitution control.
- Labels, packing groups, capped ports, and component references.
Optional functions
Typical applications
Manifold accessory sets, pipe-module fitting packages, CDU-side valve groups, hose/QD kits, and service-interface component packs.
Send the drawings.We review the build.
Share pipe size, material, pressure, interface type, quantity, fluid medium, customer test protocol, and packing destination for a focused fabrication review.
